Vicmarc VL150 V3 SM EVS 1HP

Vicmarc VL150 V3 SM EVS 1HP

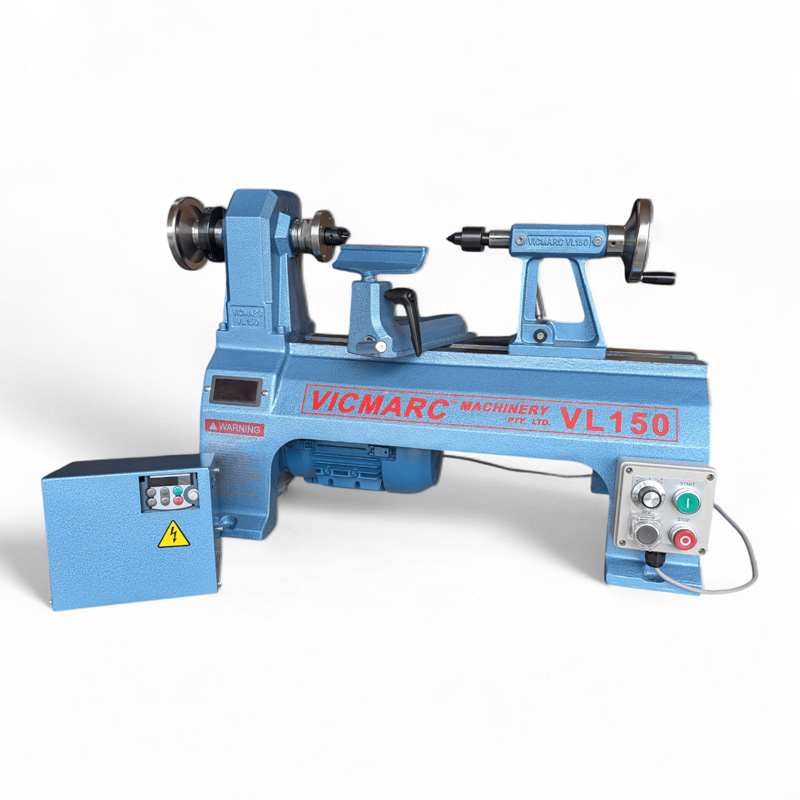

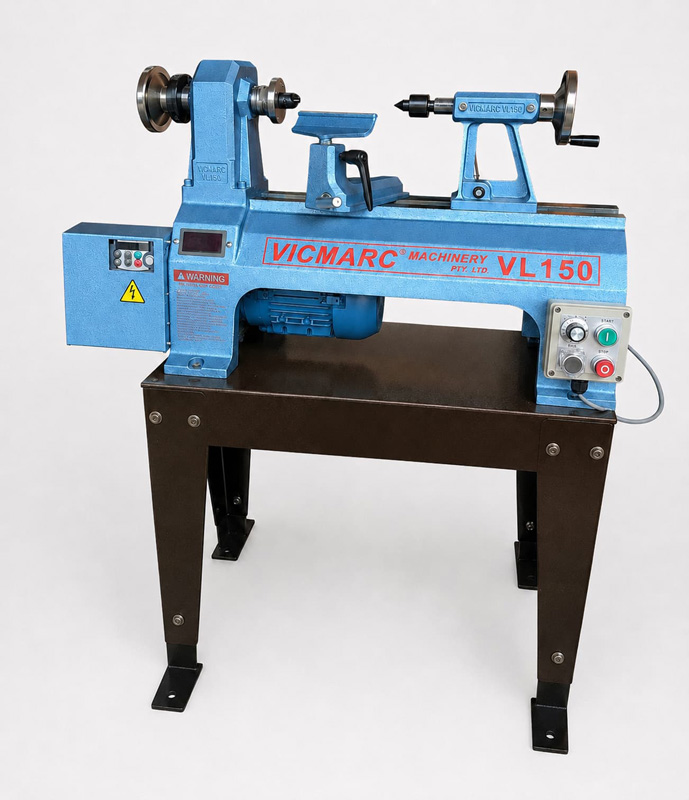

The VL150 Lathe V3 is a robust and precision-engineered mini lathe designed to deliver exceptional performance, stability, and versatility.

Powered by a reliable 1HP (0.75kW) motor, it provides up to 150% torque at low RPM with variable spindle speeds ranging from 30–3460 RPM, making it ideal for both fine detail work and demanding turning applications. Constructed from heavy-duty cast iron, the VL150 V3 offers outstanding durability and smooth operation, while MT2 tapers and premium taper roller bearings ensure superior accuracy and long-lasting reliability.

The new VL150 V3 EVS 0.75kW now comes standard with the below:

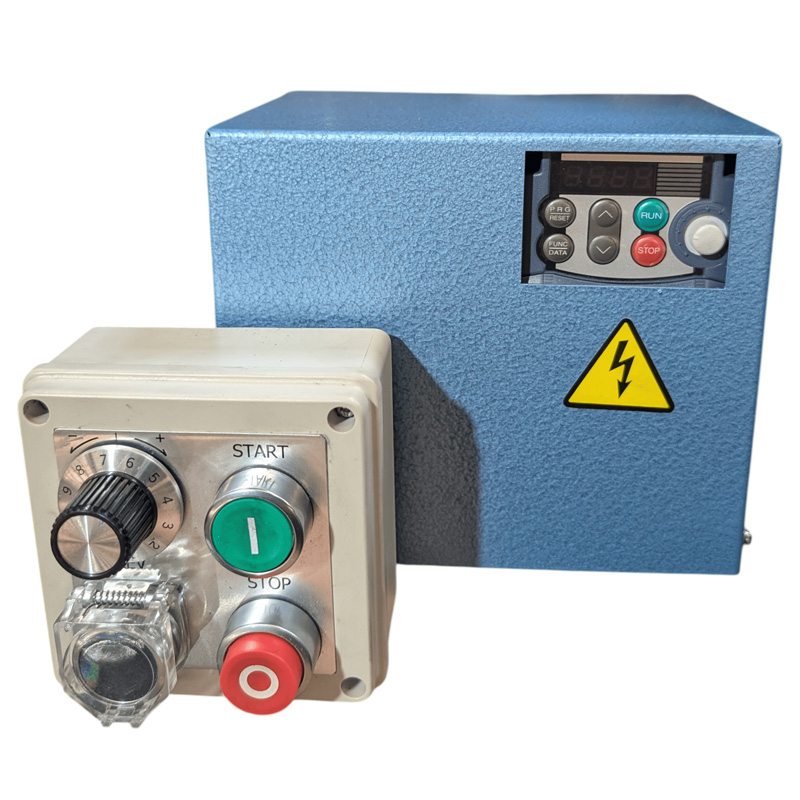

Remote Magnetic Switch box

RPM Display
This shows the exact spindle RPM regardless of belt position.

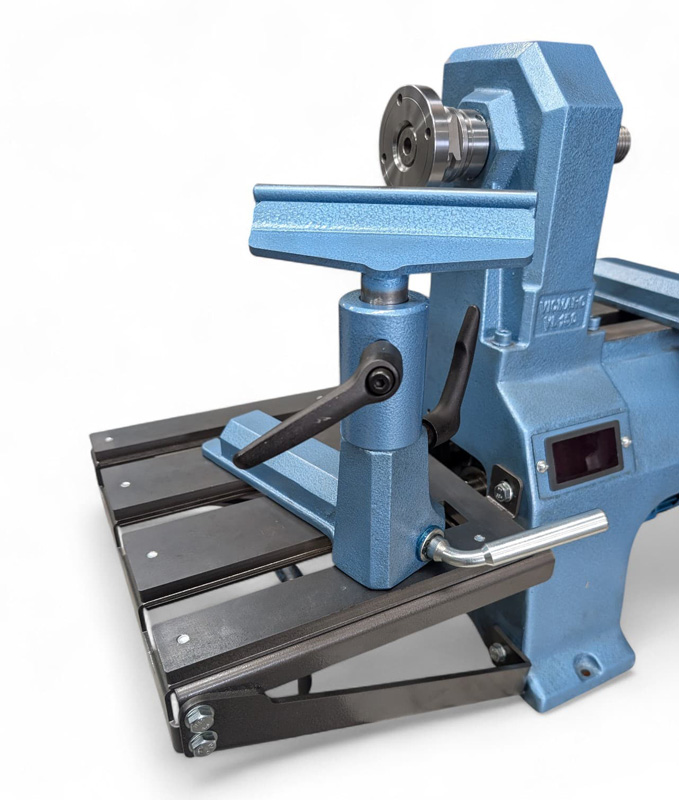

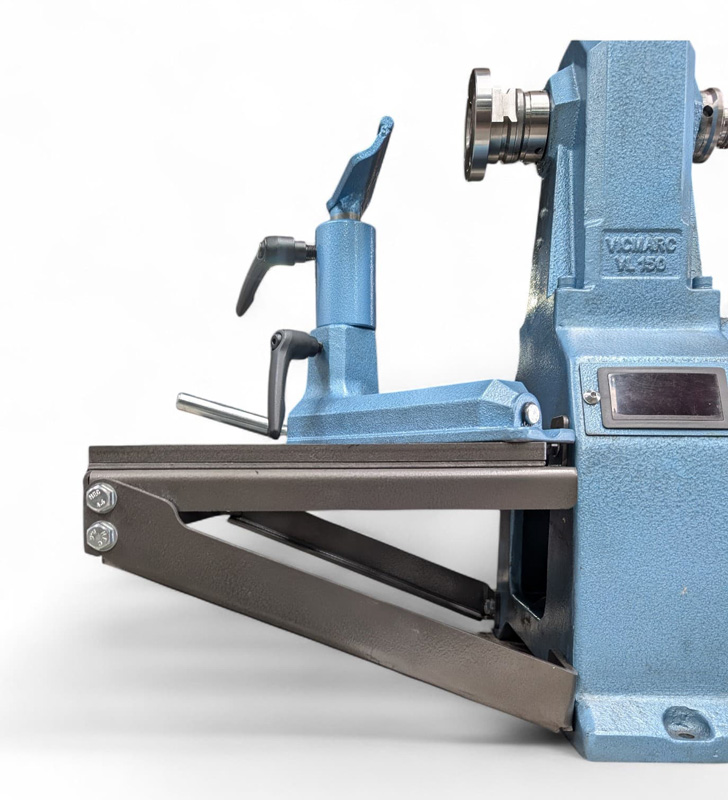

Outboard Turning Capability
You can now mount an optional outboard attachment that allows turning up to a 500mm diameter. The bed length for this is 260mm and comes with the Camlock Riser and Locking Lever.

The Same Spindle Thread
For the outboard end as the inboard side

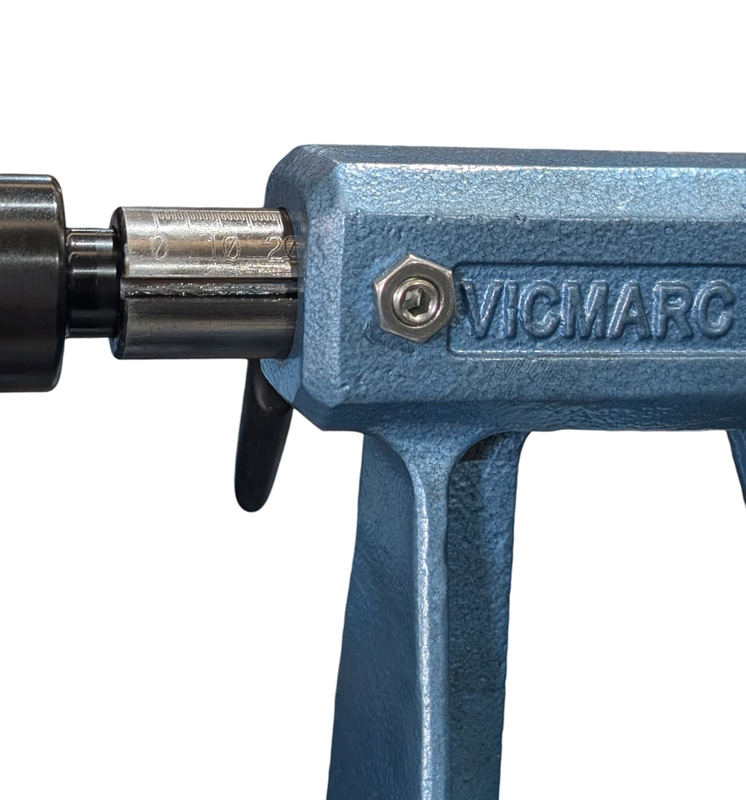

Updated Tailstock Quill Key
With the same design as the large lathes

Brass insert in the Toolrest locking lever
To prevent Tool Post bruising/damage.



New VL150 V3 EVS Upgrades

The latest V3 upgrades introduce several practical enhancements, including a remote magnetic switch box for improved operator convenience and safety, along with a digital RPM display that provides precise spindle speed readings regardless of belt position.

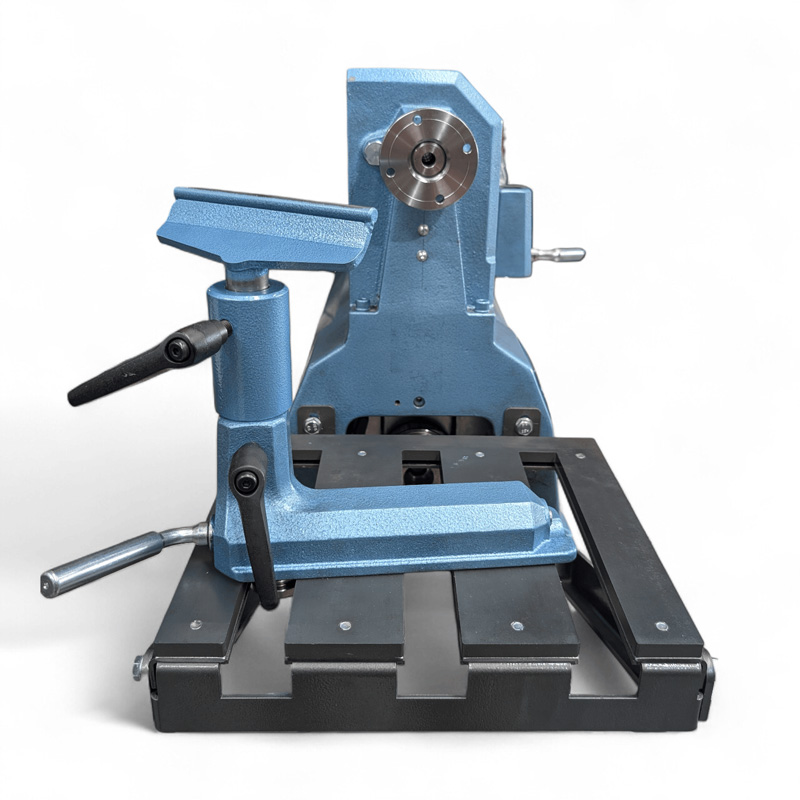

The lathe now also features outboard turning capability, allowing the optional outboard attachment to handle workpieces up to 500mm in diameter with a 260mm bed length capacity. Both the inboard and outboard ends share the same spindle thread for added versatility.

Additional refinements include an upgraded tailstock quill key based on larger lathe designs, and a brass insert in the toolrest locking lever to prevent bruising or damage to the tool post. Combining precision engineering, functionality, and high performance, the VL150 Lathe V3 stands out as one of the best value feature-for-feature mini lathes available.

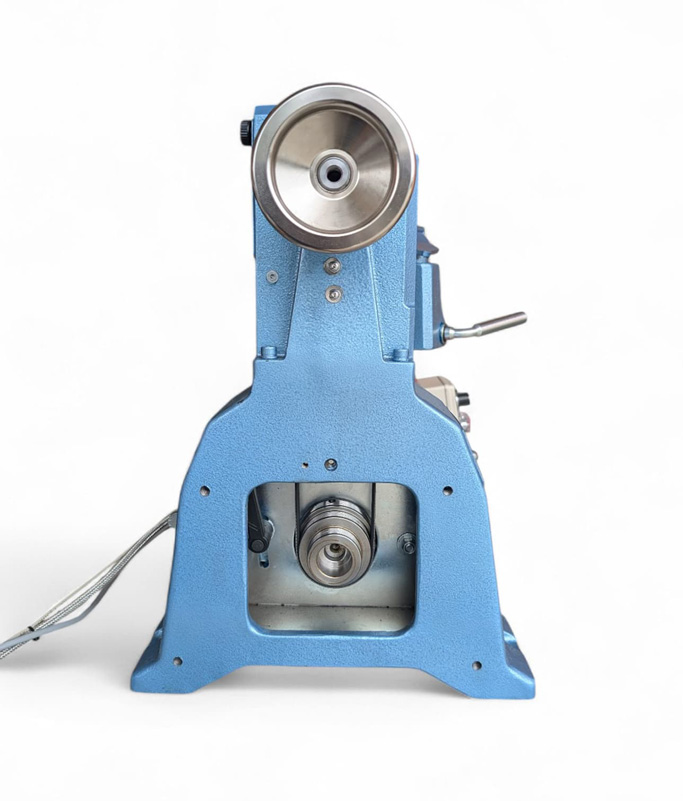

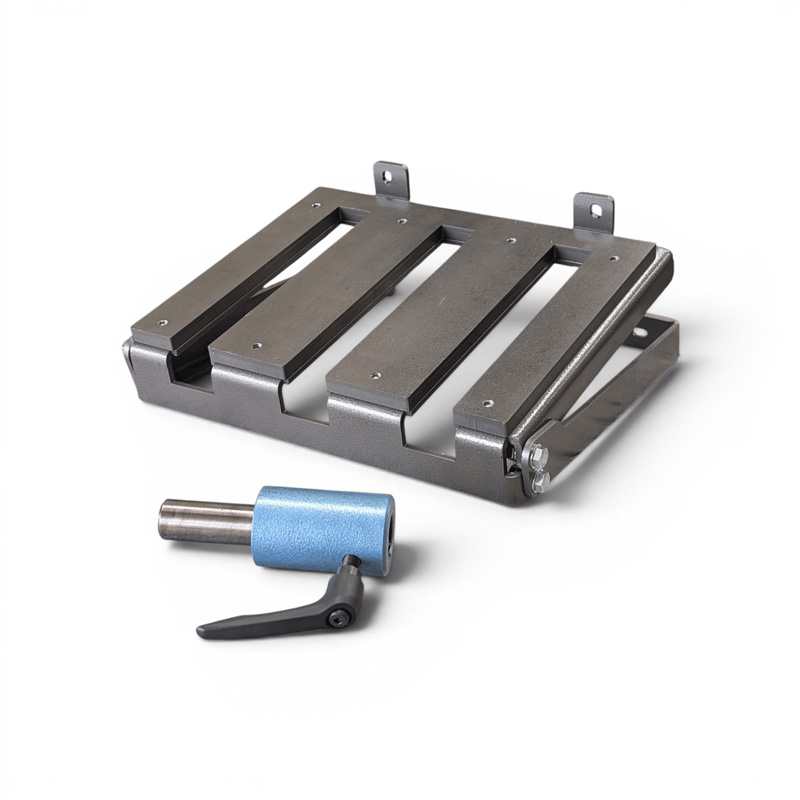

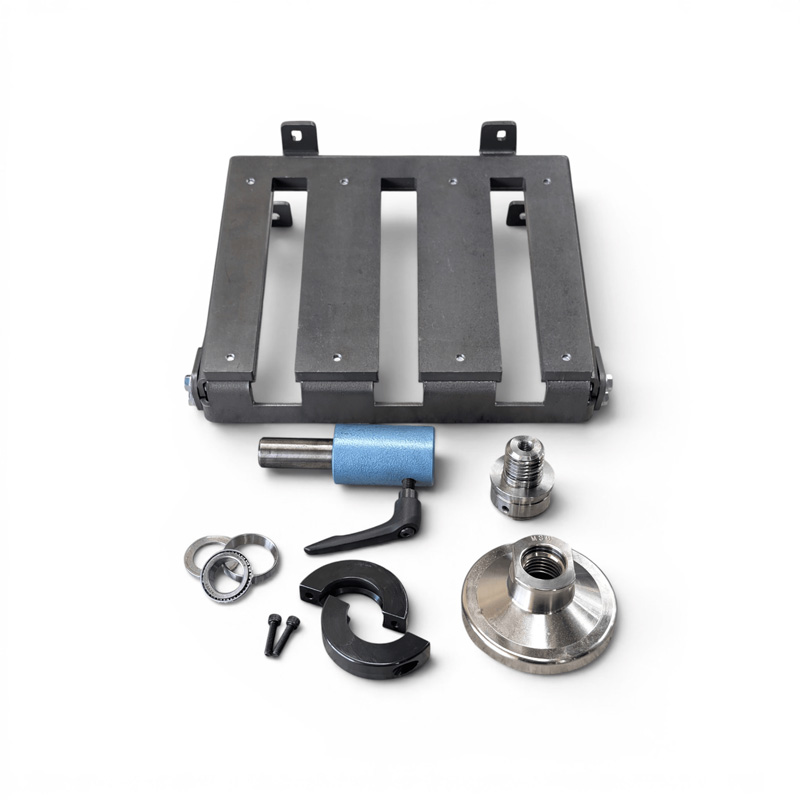

We have also created an Outboard Extension Bed Retrofit kit for those wanting to modify their existing VL150 V2 machine for Outboard Turning. The customer needs to drill 4 x 9mm holes for the bolts (drill bit not supplied).

Features Include:

  • Headstock and tailstock machined as one unit
  • Precision headstock spindle runs on taper roller bearings
  • Powerful 1HP (0.75kW) motor
  • Electronic variable speed control
  • Remote magnetic switch box
  • Headstock indexing pin
  • Digital RPM display showing exact spindle speed regardless of belt position
  • Hinged headstock door for quick and easy access
  • Door latch system designed to make belt changes faster and simpler
  • Outboard turning capability with optional attachment allowing turning up to 500mm diameter
  • 260mm outboard turning bed length capacity
  • Camlock riser and locking lever included for outboard turning setup
  • Matching spindle thread on both inboard and outboard ends
  • Updated tailstock quill key based on full-size lathe design
  • Brass insert in the toolrest locking lever to prevent bruising and damage to the tool post
  • Heavy-duty cast iron construction for superior stability and reduced vibration
  • MT2 taper configuration for increased compatibility and precision
  • Designed for high performance, durability, and precision engineering in a compact mini lathe package
